Peel-and-stick directional indicators
Self-Adhesive Tactile Strips (Peel & Stick Directional Indicators)
Guiding bars with factory-applied 3M tape for fast, drill-free installation of tactile paths in existing buildings. Same 280 × 35 × 4.5 mm profile as our stem-fixed strips, in four materials.
What they are: Self-adhesive tactile strips are directional bars, 280 mm long, 35 mm wide and 4.5 mm high, with 3M double-sided acrylic foam tape on the underside. They are pressed onto a clean, smooth floor at 75 mm centres to form a guiding path with no drilling, dust or downtime. MetalX makes them in stainless steel, brass, aluminium and polyurethane.
| Materials | Stainless steel AISI 304 / 316, brass, aluminium, polyurethane (PU) |
|---|---|
| Standard size | 280 × 35 × 4.5 mm (rounded ends); square-ended and custom lengths on request |
| Adhesive | 3M double-sided high-bond acrylic foam tape, die-cut to the bar, with peel-off liner |
| Top patterns | Linear grooves, diamond, plain, carborundum insert, coloured poly insert |
| Finishes | Satin, mirror, PVD colour coating; anodised colours for aluminium; six colours for PU |
| Layout | Bars parallel to travel direction at 75 mm centres; 4 bars per 300 mm path |
| Suitable substrates | Vitrified tile, polished stone, terrazzo, sealed concrete, epoxy, metal |
| Not recommended for | Dusty or unsealed concrete, carpet, heavily textured paving |
| Supplied with | Fibreboard alignment template and instructions |
| Lead time | Ex-stock; non-stock 3–4 days; urgent worldwide delivery within 7 days |
Overview
A guiding path through a busy concourse can involve several hundred bars. With stem-fixed strips that means three drilled holes per bar; with self-adhesive strips it means none. MetalX self-adhesive tactile strips let facility teams add or re-route tactile paths in operating stations, hospitals and malls during off-peak hours, without noise, dust or floor closures.
The bars are identical to our stem-fixed stainless steel tactile strips except for the base, which is machined flat and fitted with die-cut 3M acrylic foam tape. The tape tolerates floor cleaning chemicals, trolley traffic and temperature cycling; on suitable substrates the bond is permanent.
Available types of self-adhesive tactile strips
All bars below are supplied with factory-applied 3M tape. Custom lengths, square ends and additional PVD colours can be produced to order.
Material and finish options

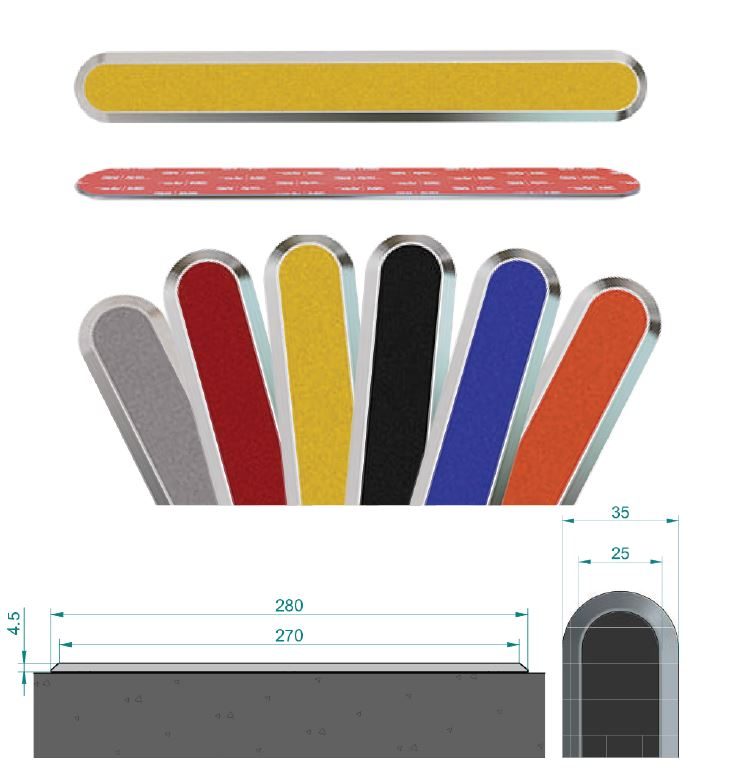

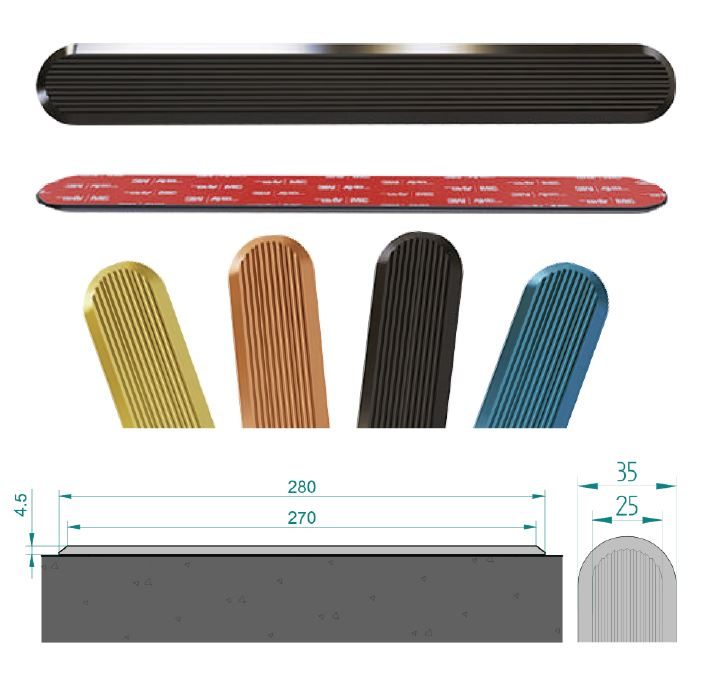

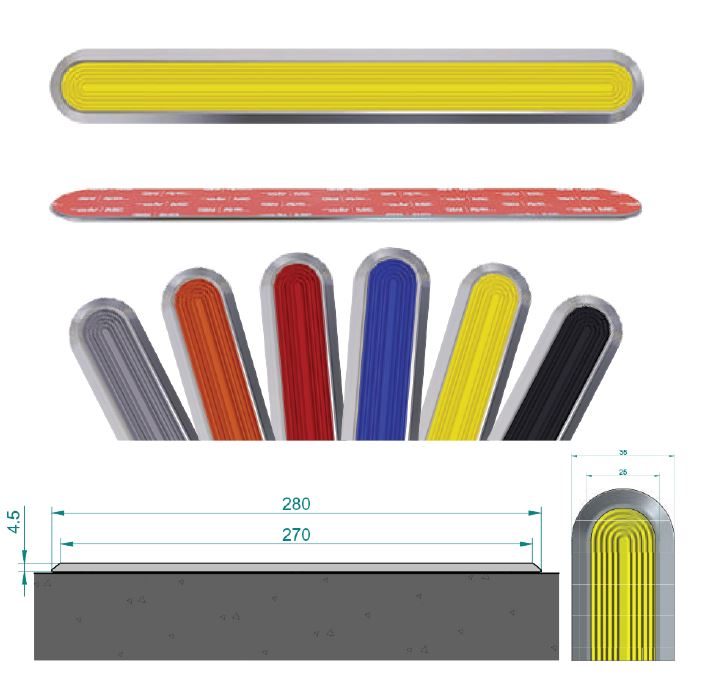

- Stainless steel: linear, diamond, carborundum and poly-insert tops, plus PVD colours. The most durable option.

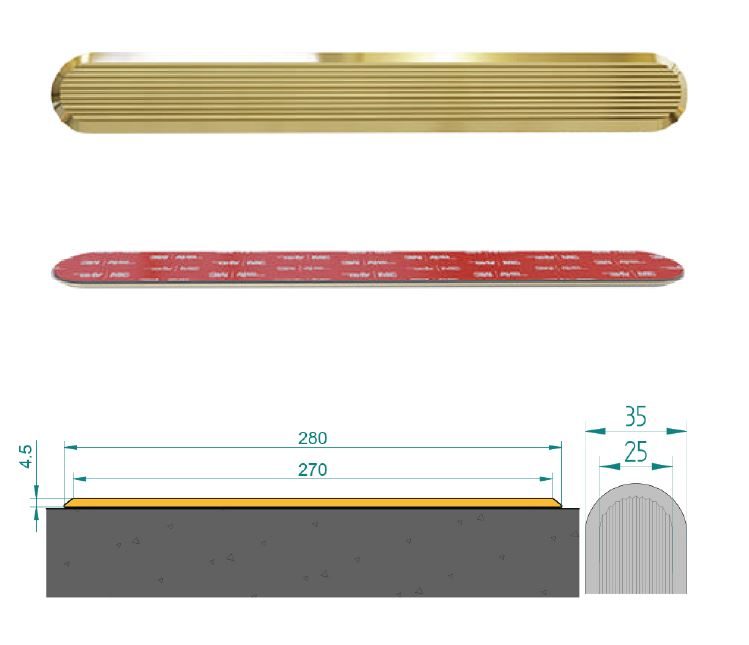

- Brass: natural gold colour for hotels, heritage and premium retail; see brass tactile strips.

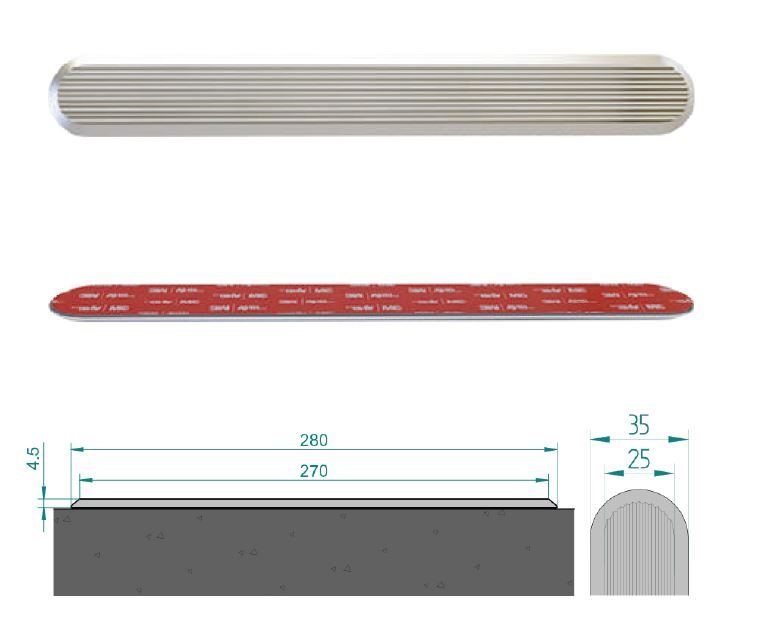

- Aluminium: one-third the weight of steel at lower cost; anodised finishes available; see aluminium tactile strips.
- Polyurethane: six colours, quiet underfoot and lowest price; see PU tactile strips.
Surface preparation is the whole job
Adhesive strips fail only when the floor is dirty, dusty, damp or porous. Wipe each bar position with isopropyl alcohol, let it flash off, and press each bar firmly for five seconds. Porous stone should be sealed first. Where a floor is doubtful, we can supply strips with both tape and stems so the installer can add epoxy at critical points.
Why strips benefit even more from adhesive than studs
A stem-fixed strip needs three drilled holes; a stem-fixed stud needs one. Per metre of guiding path that is about forty holes, each of which must be drilled, cleaned, filled with epoxy and left to cure. The same metre of self-adhesive strips is thirteen wipes and thirteen presses. On long concourse paths the labour saving is larger than on any other tactile product, and there is no cure time before the concourse reopens.
Which floors qualify
| Floor | Suitable? | Notes |
|---|---|---|
| Vitrified or ceramic tile | Yes | Keep the bar clear of wide grout joints |
| Polished granite, marble | Yes | Strip wax or crystalliser first |
| Terrazzo, epoxy, resin floors | Yes | Fully cured and sound |
| Sealed concrete, metal panels | Yes | Test a sample; seal if dusty |
| Textured or flamed stone, paving blocks | No | Use stem-fixed strips |
| Carpet | No | Use screw-fix strips |
Lippage matters more for a 280 mm bar than for a 35 mm stud. If adjacent tiles differ in height by more than 2 mm, shift the path so the bar sits on one tile, or use stem-fixed bars at that point.
Choosing the material and pattern
Stainless steel with a linear top is the default for stations, hospitals and offices; diamond knurl for wetter areas; carborundum insert for the wettest, busiest routes; coloured poly insert or PVD where the floor is grey and contrast is needed. Brass suits hotels and heritage interiors, aluminium suits large budget-driven areas, and PU in six colours gives the strongest contrast at the lowest cost. All are the same 280 × 35 × 4.5 mm bar, so a path can change material at a doorway without changing feel.
How many strips, and how fast
A 300 mm path takes four bars across at 75 mm centres, about 13.3 bars per metre. Two people install 150–200 self-adhesive bars an hour on prepared tile, roughly 12–15 metres of path per hour including setting out. A 100 m hospital route is a day’s work. Every turn, junction and destination still needs a warning field of studs; self-adhesive studs use the same tape and the same height.
What affects the price
- Material: PU, then aluminium, stainless steel, brass.
- Pattern and finish: linear is the base; carborundum, poly insert and PVD add operations.
- Length and ends: non-standard lengths and square ends are made to order.
- Quantity and destination: volume pricing from a few hundred metres.
Mistakes we see with self-adhesive strips
- Pressing only the middle of the bar. Press from one end to the other so no air is trapped, then press the ends again.
- A bar bridging a grout joint or lippage. Move the layout; a rocking bar will lift.
- No alcohol wipe. Residue from floor polish is invisible and stops the bond.
- Path laid before final floor cleaning. Install after the builders’ clean, not before.
- Missing warning squares at turns. Every change of direction needs a stud field.
Typical specification clause
“Self-adhesive tactile directional strips: solid stainless steel AISI 304 [or 316 / brass / aluminium / polyurethane] bars 280 × 35 × 4.5 mm, linear pattern top, factory-applied 3M double-sided acrylic foam tape, installed parallel to the direction of travel at 75 mm centres, four bars per 300 mm path, on a surface cleaned with isopropyl alcohol at 10–40 °C; no wet cleaning for 24 hours; warning stud fields at all changes of direction. Manufacturer: MetalX Engineering Inc., Mumbai, or approved equal.”
Where they are in service
Hospital and university corridors in India, the UK and Canada, retrofitted guiding paths in operating metro concourses in India, shopping centres in the UAE and Qatar, and office lobbies on raised access floors across Indian IT parks.
Applications
- Guiding paths in operating metro, rail and airport concourses
- Hospital corridors from entrance to reception, lifts and wards
- Shopping malls, hotels and convention centres
- Corporate lobbies and raised-access-floor offices
- Universities, libraries and museums
- Temporary routes during renovation or events
- Bus terminals and ferry piers with tiled floors
Why specify MetalX self-adhesive tactile strips
- Zero drilling: install hundreds of metres per shift with a two-person crew
- Factory-applied genuine 3M tape, die-cut to the bar profile
- Same 280 × 35 × 4.5 mm profile as stem-fixed strips
- Four materials, five top patterns, PVD and anodised colours
- Alignment template keeps bars parallel at 75 mm centres
- Removable with heat for leased or temporary spaces
- Ex-stock dispatch from Mumbai; exported to more than 142 countries
- Over three decades of tactile manufacturing experience
Installation
Snap a chalk line along the path centreline. Clean each bar position with isopropyl alcohol. Place the alignment template on the line, peel the liner from a bar, drop it into the template slot and press firmly for five seconds, working from one end. Move the template along and repeat. Avoid wet cleaning for 24 hours; the bond reaches full strength in 72 hours.
Compliance and standards
The bar geometry (35 mm wide, 4.5 mm high, 75 mm centres) aligns with AS/NZS 1428.4.1 directional indicators and ISO 23599 guiding patterns, and suits the guidance-path surfaces described in BS 8300-1 and the Indian Harmonised Guidelines 2021. Standards govern the surface profile and contrast, not the fixing method, so adhesive installation is acceptable where the substrate is suitable.
Frequently asked questions about self-adhesive tactile strips
Where can self-adhesive tactile strips be installed?
On any clean, smooth, dense floor: vitrified and ceramic tile, polished granite and marble, terrazzo, epoxy and sealed concrete, and metal. Avoid dusty or unsealed concrete, carpet and rough paving, where stem-fixed strips are the right choice.
How long do self-adhesive tactile strips last?
On suitable substrates the 3M acrylic tape bond is permanent and the stainless steel bar will outlast the floor finish. Installations we supplied more than ten years ago remain in service in Indian metro stations and malls.
Can I get the strips in colour for contrast?
Yes. Choose coloured polyurethane inserts, PVD colour coatings on stainless steel, anodised aluminium or solid-colour PU strips in grey, red, yellow, black, blue or terracotta.
What spacing should the strips have?
Lay bars parallel to the direction of travel at 75 mm centre-to-centre, giving four bars across a 300 mm-wide path. Our fibreboard template is pre-cut to this spacing.
Do you export self-adhesive tactile strips?
Yes. MetalX has supplied self-adhesive strips to projects in the USA, UK, Canada, Germany, Saudi Arabia, UAE and Qatar, and ships to more than 142 countries with full export documentation.
Can the strips be combined with self-adhesive studs?
Yes. Guiding strips normally lead to a field of warning studs at a hazard or decision point; both are available with 3M tape and the same 4.5 mm height for a consistent installation.
How many metres of self-adhesive strips can be installed per day?
Two people typically lay 12–15 metres of 300 mm path per hour on prepared tile, so about 100 metres in a working day including setting out and warning squares.
What is the price of self-adhesive tactile strips?
It depends on material, pattern, finish, length, quantity and destination. PU is the lowest cost and brass the highest. Send a plan or metre count for a firm quotation.
Can self-adhesive strips go over floor tile grout joints?
Avoid it. Shift the path a few millimetres so each bar sits on solid tile; a bar bridging a recessed joint can rock and lift.
Do self-adhesive strips work on raised access floors?
Yes. Metal and composite raised-floor panels give an excellent bond, and no drilling into the panel or void is needed.
Export, stock and lead times
MetalX Engineering Inc. keeps standard sizes of self-adhesive tactile strips in ready stock at its Mumbai factory. Non-stock sizes and finishes are normally manufactured in 3 to 4 working days. For urgent projects we regularly deliver by air courier within 7 days to major cities worldwide.
We have supplied tactile indicators to projects in the United States, Canada, the United Kingdom, Germany, Saudi Arabia, the UAE, Qatar, Kuwait, Oman, Australia, Singapore and across India, and export to more than 142 countries in total. Every shipment includes a packing list, material test certificate on request, and installation templates.
